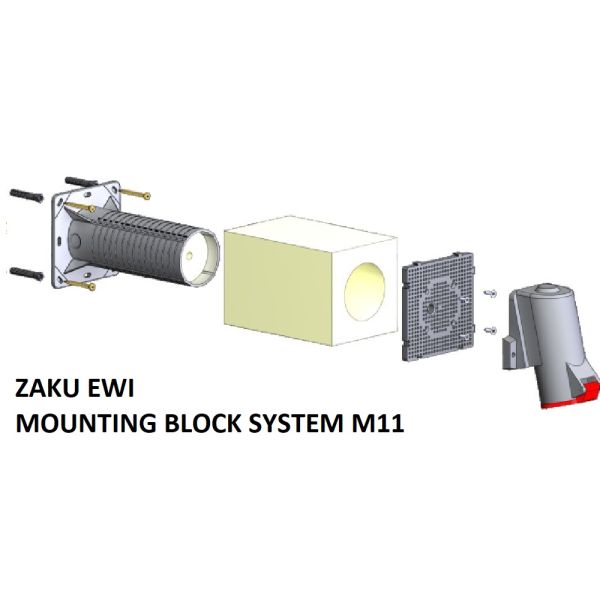

ZAKU EWI MOUNTING SYSTEM FOR ELECTRIC CAR SOCKETS & LAMPS - STANDARD

• for the installation of electrical car chargers in EWI SYSTEMS also outdoor lights, motion sensors, sockets, etc.)
• eliminates thermal bridging
• suitable for common types of contact insulation (facade eps polystyrene & mineral wool)
• possible installation of the device at a thickness of 50 – 200 mm
• installation thermally insulated buildings facades with a thickness from 50 to 200 mm
• the package includes dowels, screws, bolts

dimension M11: 119x119x200mm

material: self-extinguishing PP
temperature resistance: from -25 to +60 °C
load capacity: max. 4 kg

Instruction:

1. installation is done during thermal insulation installation
2. the carrier is fixed to the wall with screws and dowels depending on type of the wall surface
3. the cable is pulled through the carrier and inserts shorten insulation
4. the finally installation of box should be done by 4 added screws
5. for installation of 400 V plug we recommend chemical anchors

STEINLESS STEEL SCREWS RECOMMENDED
